So, now that I have my data, what do I do with it?

Visualizing Data

Graphs are one way to visualize data and to help the researcher look for patterns. A graph is used to show the relationships of data collected from the experiment. Graphs must be constructed accurately and according to accepted rules. Usually, a graph shows the relationship between two kinds of data. These data are called variables. In research there are frequently types of variables.

The independent variable is data that influences the outcome of the experiment. Often the experimenter has control over this variable. Time is a very common independent variable. This data is plotted in the horizontal axis, x axis. In our research we are going to explore the relationship of time and level of ultraviolet light. Time is our independent variable.

The dependent variable depends on the conditions of the investigation, and frequently on the independent variable. The dependent variable is sometimes referred to as the outcome variable. The dependent data is plotted on the vertical axis, the y axis. In our research the level of UV as measured by the meter is our dependent variable.

Remember when you make graphs;
1) Select scales for the horizontal and vertical axes which will reflect the precision of the measurements. Display the data in a proportional way. Remember, each square on the graph is equal to an assigned quantity but the scale of either axis may be changed if the graph is too compact or needs to be expanded.
2) It is important to label both the vertical and horizontal axes with the variables being graphed and also to indicated the units being used.

Spreadsheets will offer you a graphing options for your data but it is very important that you understand the graph you have made and that the graph accurately represents your data.

Construct a bar graph of the data you have collected day to day.

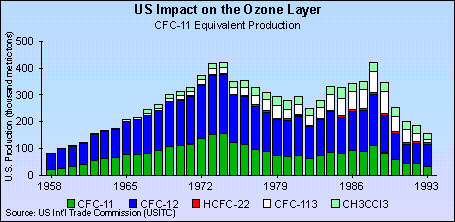

The following is a bar graph of CFC-11 equivalent production in the United States.


While bar graphs are interesting and a good way to visualize data, they have some problems. This graph does not allow us to really explore the relationship between time, especially seasonal time and the UV level.

Construct a two-variable line graph of your data.

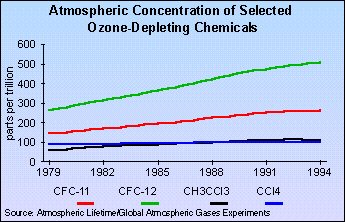

Line graphs show the relationship between two kinds of data in which the independent variable is continuos. After the proper points are plotted on the graph, they should be connected by a line. To learn more about graphing and how to make various kinds of graphs, the DIGSTATS site should be helpful. The following is a line graph showing the day of the year and UV level. It represents the atmospheric concentrations of some ozone depleting chemicals.


Making a Box Plot

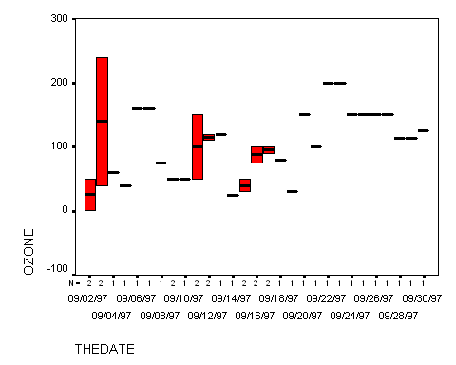

John Tukey developed a technique which gives greater prominence to the dispersion, the spread of the data. This method is known as a boxplot, or a box-and-whisker plot. To learn how to construct a boxplot. Select boxplot on the DIGSTATS site. The following is an example of a boxplot of data.

Using Geographic Information Systems for Analysis

A geographic information system (GIS) is a computer-based tool for mapping and analyzing things that exist and events that happen on earth. The data that we have collected as a part of this project is well suited to GIS technology because it has a critical geographic dimension. GIS integrates common database operations such as query and statistical analysis with the unique visualization and geographic analysis benefits offered by maps. These abilities distinguish GIS from other types of analysis.

Mapmaking and geographic analysis are not new, but a GIS performs these tasks better and faster than do the old manual methods. And, before GIS technology, only a few people had the skills necessary to use geographic information to help with decision making and problem solving. A GIS stores information about the world as a collection of thematic layers that can be linked together by geography. This simple but extremely powerful and versatile many real-world problems from tracking delivery vehicles, to recording details of planning applications, to modeling global atmospheric circulation.

I would like to work with the data in a map-based format.
